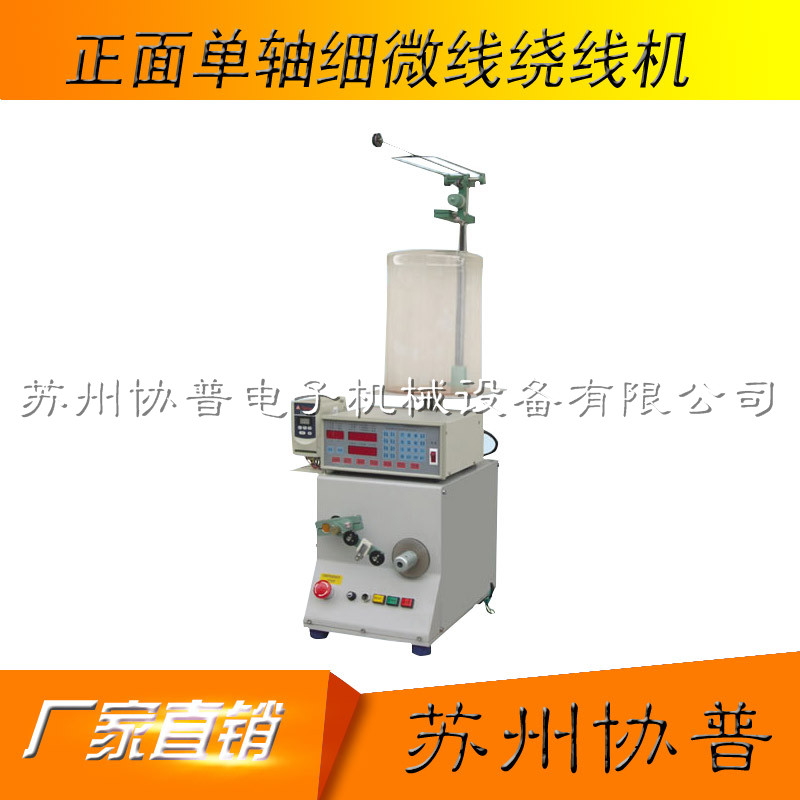

Front single axis fine wire winding machine sp-101a
- Brand: 協普/REPOSAL
- Product Code: SP-101A
- Availability: In Stock
- Ex Tax: login to see prices
Front single axis fine wire winding machine sp-101a
Front single axis fine wire winding machine sp-101a Features:
The controller adopts a precision CNC winding machine controller and is equipped with a Taiwan TECO inverter to ensure stable operation.
The professional controller of the winding machine has complete functions, clear layers, simple setting and many additional expansion functions, such as deceleration at both ends, parking at both ends, power-off memory and other functions.
The program can be changed according to the specific requirements of customers to achieve multi-function.
The power circuit uses an improved anti-interference circuit, which has strong anti-interference ability.
The winding system of the winding machine can adjust the position in time during the winding process, and the winding is stable and low noise.
It can store 1000 sets of processing data, and it will not be erased when the power is turned off.
Integrated casting case, stable and reliable.
Model (Model NO) sp-101a
Applicable wire size (wire Size) mm 0.02-0.2
Maximum speed (Max.Speed) 5000 rpm
Main motor AC 370W
Spreading Motor 9V (Stepping Motor)
Spreading Width mm 95
Net Weight (Net Weight) KG 53
Dimensions (Dimensions L * W * H) mm 280 * 550 * 1000
