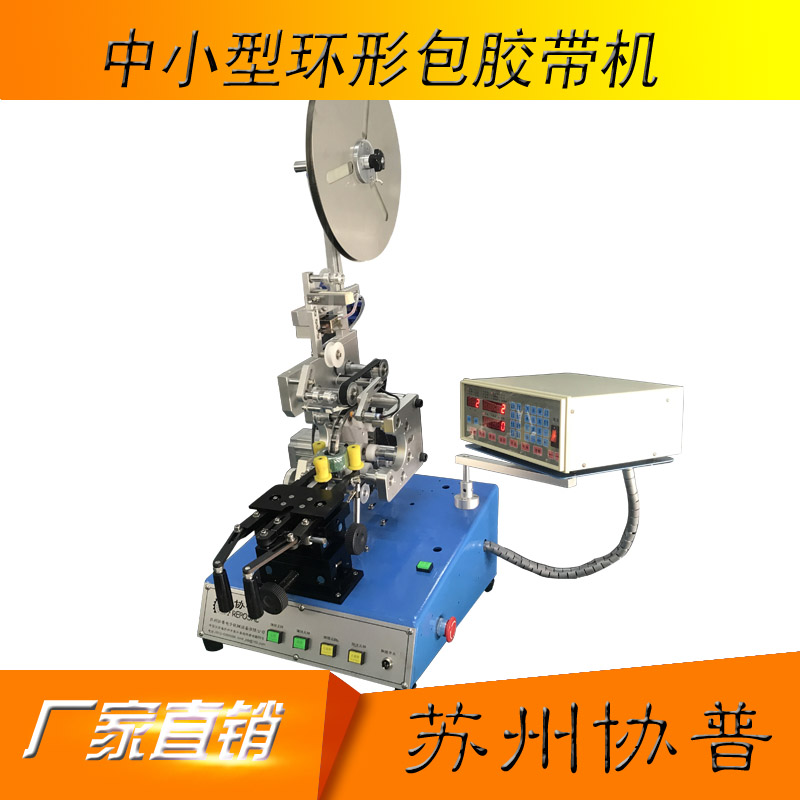

Ring wrap tape machine sp-600j
- Brand: 協普/REPOSAL
- Product Code: sp-600j
- Availability: In Stock
- Ex Tax: 登錄以查看價格
Ring wrap tape machine sp-600j
Ring wrap tape machineproduct manual
1. The storage capacity of the tape is automatically measured by the internal sensor of the precision motor, and the accuracy and life are not affected by the dust and the environment.
2. It has good control of the inertia of the tape reel, so that it can ensure that the storage tape is fast, and is not affected by inertia.
3. Self-powered memory function, even after a long time after power off, it can be restored to the power off state.
4. Up to 1000 sets of process data programs, variable pitch can be set according to need, multi-section winding, (various independent control of speed, number of turns and direction)
6. The winding speed, number of turns and various working states are displayed during winding.
7. The Japanese high-precision photoelectric sensor is used to detect the number of windings, with high sensitivity and accurate counting.
8. Accuracy of the belt storage mechanism, low runout, low noise, flexible control and long service life.
Ring wrap tape machine (video)
Model: SP-600J (Reference video)
Packing method: belt type
Bandwidth range: 5-10mm
Maximum finished outer diameter: 63.5mm
Minimum finished outer diameter: 16mm
Minimum finished inner diameter: 14mm
Maximum finished height: 38mm
Winding motor: DC brushless 600W
Power supply: 220V 50 / 60HZ
Machine size: 50 * 60 * 150cm
