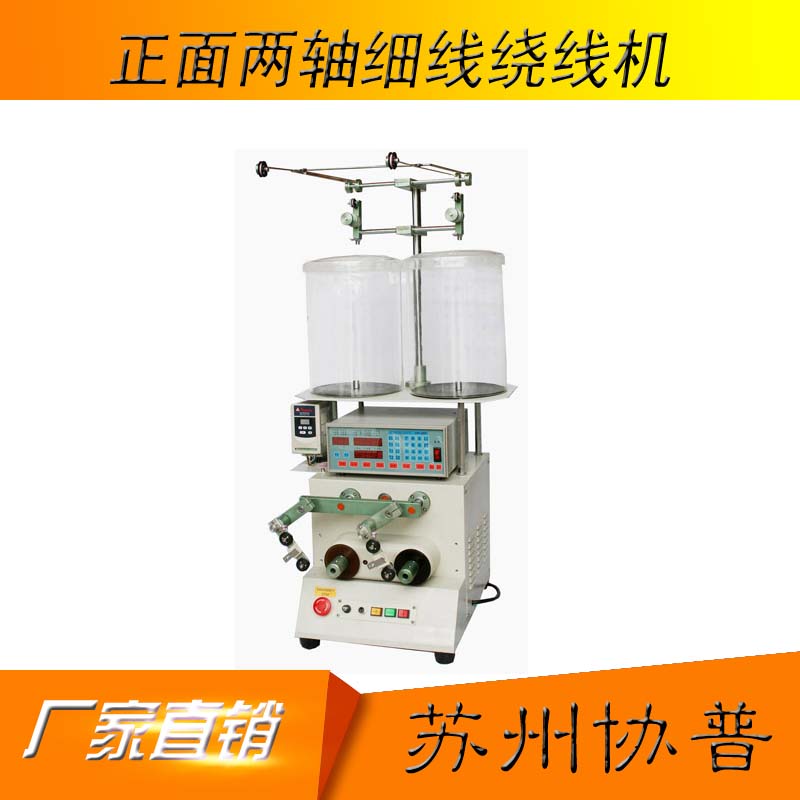

Front two-axis fine wire winding machine sp-201a
- Brand: 協(xié)普/REPOSAL
- Product Code: sp-201a
- Availability: In Stock
- Ex Tax: login to see prices
winding machine Features:
The controller adopts a precision CNC winding machine controller and is equipped with a Taiwan TECO inverter to ensure stable operation.
The professional controller of the winding machine has complete functions, clear layers, simple setting and many additional expansion functions, such as deceleration at both ends, parking at both ends, power-off memory and other functions.
The program can be changed according to the specific requirements of customers to achieve multi-function.
The power circuit uses an improved anti-interference circuit, which has strong anti-interference ability.
The winding system of the winding machine can adjust the position in time during the winding process, and the winding is stable and low noise.
It can store 1000 sets of processing data, and it will not be erased when the power is turned off.
Integrated casting case, stable and reliable.
winding mahine Model: SP-201A
Front two-axis thin wire winding machine
Control mode: AC variable frequency motor control
Number of spindles: 2 axes
Spindle speed: 3000RPM
Wire diameter range: 0.03-0.2mm
Cable range: 0-120mm
Bag size: 2-25mm
Spindle motor: AC inverter motor 370W
Cable motor: stepping motor
Power supply: single-phase AC220V 50 / 60Hz
Equipment weight: about 45Kg
One-piece cast chassis, with winding and flex cable.
