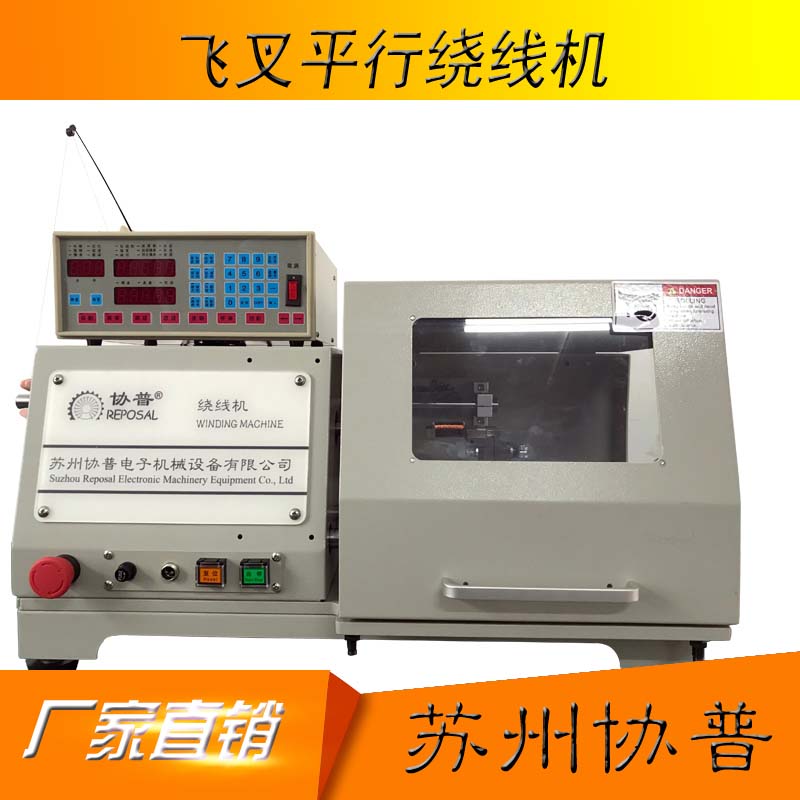

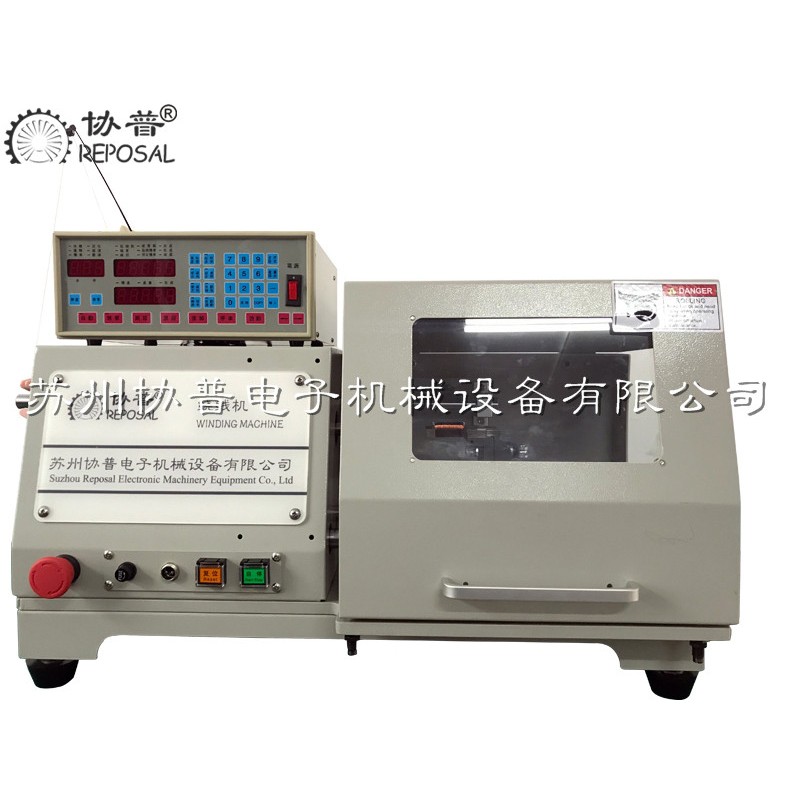

Parallel fly fork winding machine
- Brand: 協普/REPOSAL
- Product Code: sp-d102fa
- Availability: In Stock
- Ex Tax: 登錄以查看價格
Parallel fly fork winding machine
?Parallel fly fork winding machine (Reference video)

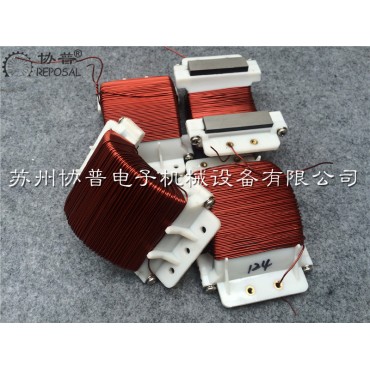

REPOSAL parallel flying fork winding machine is mainly for the production and development of transformer coil, cooling fan coil, extractor fan coil and micro motor coil.
product description:
The REPOSAL parallel flying fork winding machine adopts a special precision winding machine controller and cooperates with a precision winding spindle to automatically complete winding, arranging and action.
The winding speed is adjustable, the cable arrangement is neat and the positioning is accurate.
Can be customized according to customers.
The speed is up to 4000RPM.
Product loading and unloading is fast and stable.
Based on the characteristics of the flying fork winding machine, a practical and convenient safety cover is designed.
Technical Parameters:
Model: SP-D102FA
Spindle (Number of Spindles) single axis
Controller (Controller) Precision CNC winding machine controller
Main motor 600W precision DC motor
Spreading motor Stepping motor
Angle motor (Ploe changing motor) Stepper motor
Maximum speed (Speed) RPM 4000
Tension system:Permanent magnetic tension device
Applicable wire size (Wire size) MM 0.03-0.4
Power supply (Power supply) 220V 50HZ
Machine weight (Weight) KG 50
Machine size (Dimensions L x W x H) MM 500 * 400 * 500
